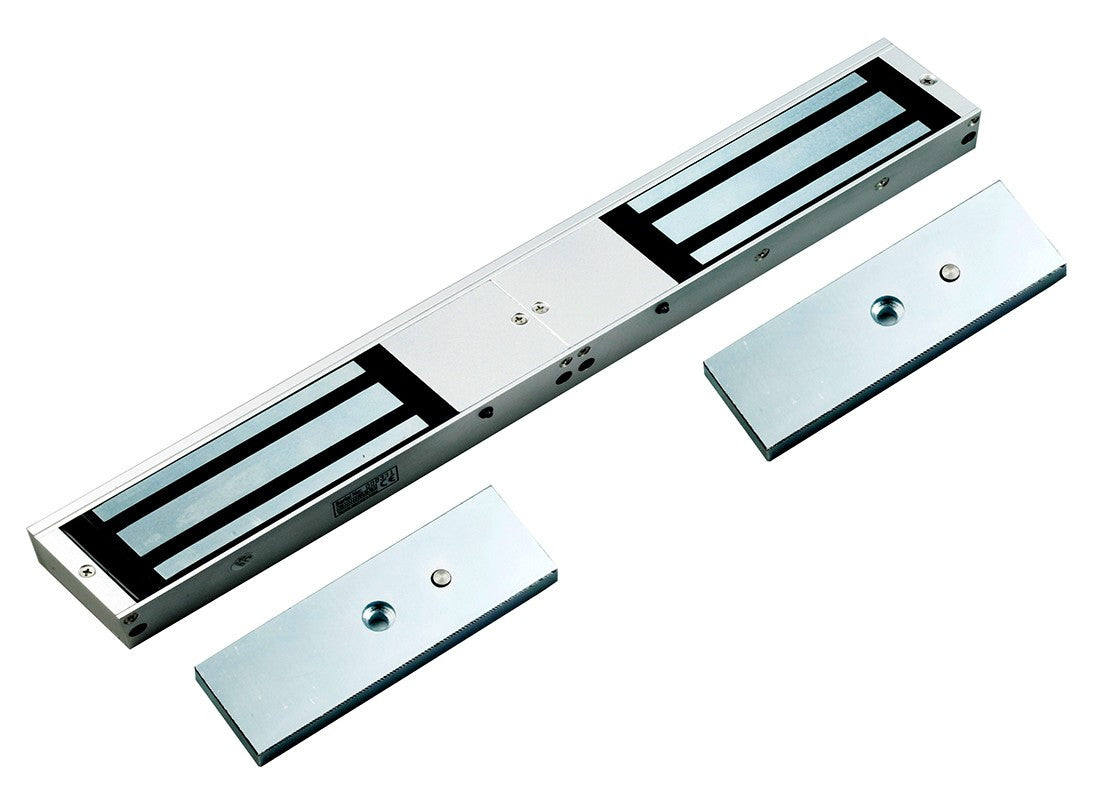

280 Kg "Double Door" Access Control Magnetic Lock - 1200 LBS Total Holding Force

280 Kg "Double Door" Access Control Magnetic Lock - 1200 LBS Total Holding Force

$145.00

1 Set with 2 Plates

Most popular - Double Door magnetic lock Holding Force - total 1200 lbs
Electronic Magnetic Lock + LED signal light

NC - Normal Close ( Fail Safe ) , Closed when power is " ON ". Opened when out of power.

Package Includes: 1 Electro Magnetic Lock, 2 Steel Plates, 2 Sets of Mounting Bolts/Tools

- Dimension: 500L x 42W x 25H(mm)

- Armature Plate size : 180L x 32W x 11 H (mm)

- Holding Force: 2 x 280 kg ( 2 x 600 lbs = 1200 lbs )

Power : 12/24 VDC adjustable

- Suitable for: Wooden Door, Glass Door, Metal Door, and Fireproof Door.

- Weight: 4.0kg ( 9 lbs)

Metal Plate : Special Tracking Surface to enhance holding strength.

We ship to U.S lower 48 Continental States only.

Brackets also available. Contact us (909)592-8881 for more info and pricing.
