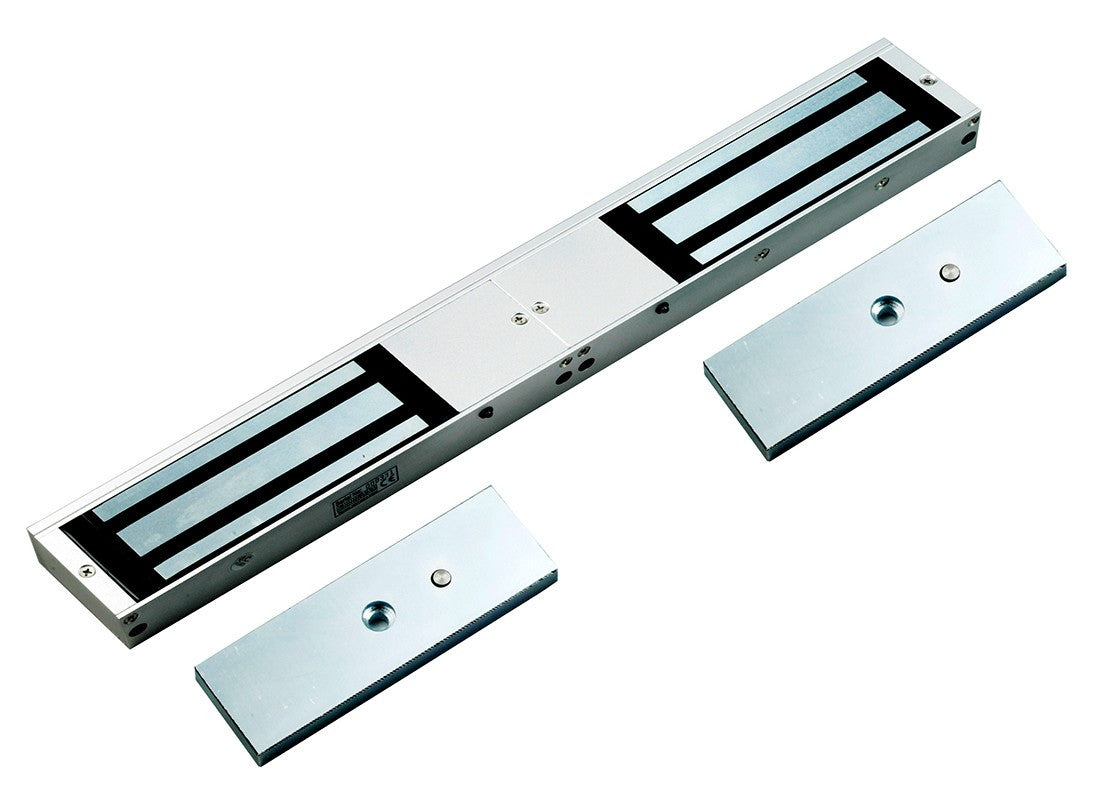

350 Kg "Double Door" Access Control Magnetic Lock - 1600 lbs Total Holding Force
1 Set with 2 Plates
Most popular - Double Door magnetic lock
Total Holding Force : 1600 lbs
Electronic Magnetic Lock + LED signal light
NC - Normal Close ( Fail Safe ) , Closed when power is " ON ". Opened when out of power.
Package Includes: 1 Electro Magnetic Lock, 2 Steel Plates, 2 Sets of Mounting Bolts/Tools
- Dimension: 570L x 49W x 27.5H(mm)
- Armature Plate size : 188 x 44 x 11 (mm)
- Holding Force: 2 x 350 kg ( 2 x 800 lbs = 1600 lbs )
- Power : 12/24 VDC adjustable
- Suitable for: Wooden Door, Glass Door, Metal Door, and Fireproof Door.
- Weight: 5.0kg (11 lbs)
Metal Plate : Special Tracking Surface to enhance holding strength.
Brackets also available. Contact us (909)592-8881 for more info and pricing.
