380 Kg "Single Door" Access Control Magnetic Lock - 836 LBS Holding Force - W/LED Status Indicator

380 Kg "Single Door" Access Control Magnetic Lock - 836 LBS Holding Force - W/LED Status Indicator

$74.00

 The most popular model - EM 380LED - Single Door

Holding Force: 836lbs
NC - Normal Close ( Fail Safe ) , Closed when power is " ON ". Opened when no power.

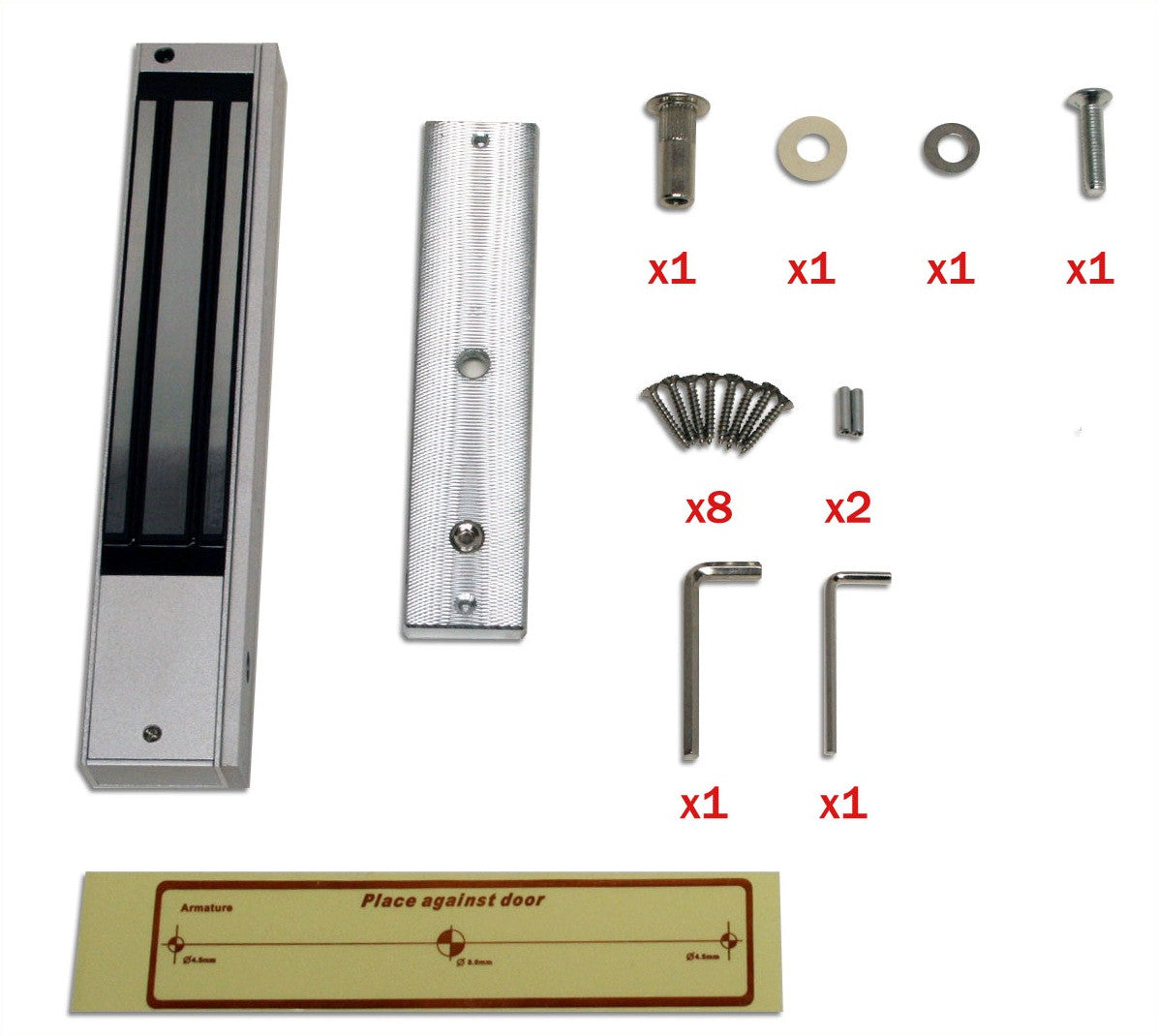

Included in EML package: 1 Electro Magnetic Lock, 1 Steel Plate, 1 Set of Mounting Bolts/Tools

 Single Door EM Lock with LED light (Red/Green) indicator

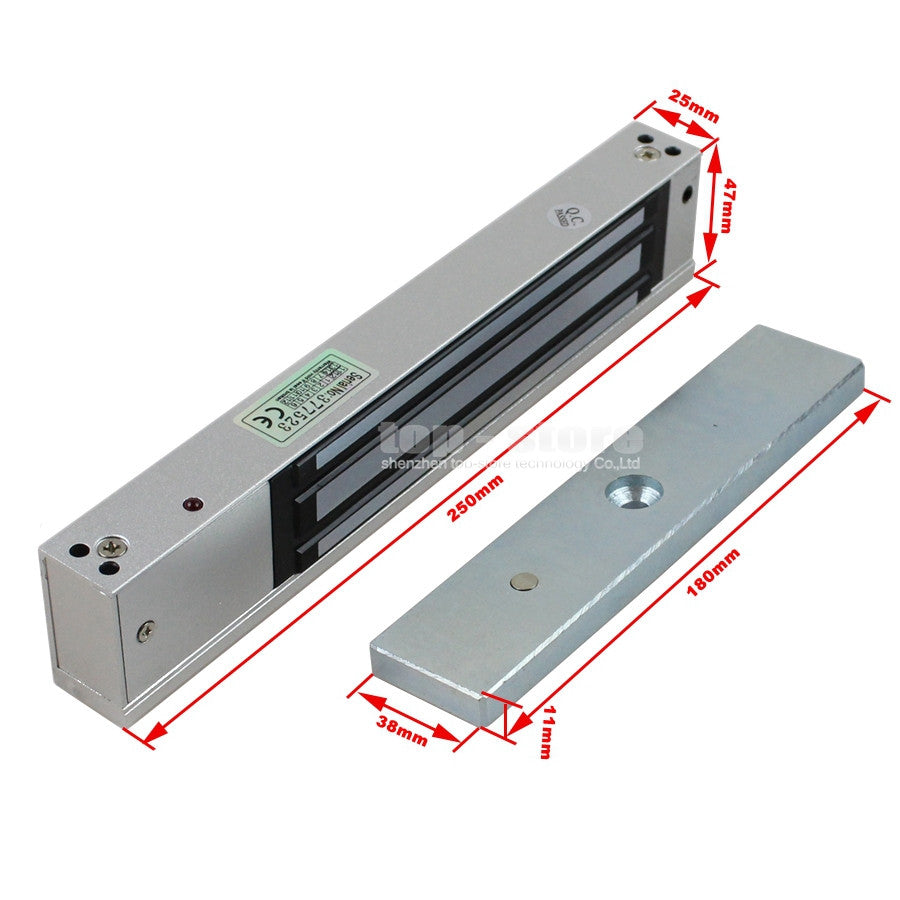

- Dimension: 250Lx48.4Wx20H(mm)

- Holding Force: 380kg( 836 lbs)

- Suitable for: Wooden Door, Glass Door, Metal Door, and Fireproof Door.

- Product Weight: 5.4lbs

All mounting bolts included

Features

Product

Electro magnetic Locks with LED

Voltage

DC12V and DC24V adjustable

Main Features

With LED and Feedback

Current Draw

12V/500mA 24V/250mA

Holding Force

380kg (836lbs)

Lock Size

285Lx55Wx30H(mm)

Armature plate

189Lx45Wx12H(mm)

Suitable for

Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp

≤+20°C

Operating Temp

-10~+55°C(14-131F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum&surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2.5kg



 Benefits:

 With dual voltage of 12V and 24V, which can be adjusted by the voltage selector.

  • Material of PCB enables a stable voltage and long life.
  • Better aluminum and better plating.

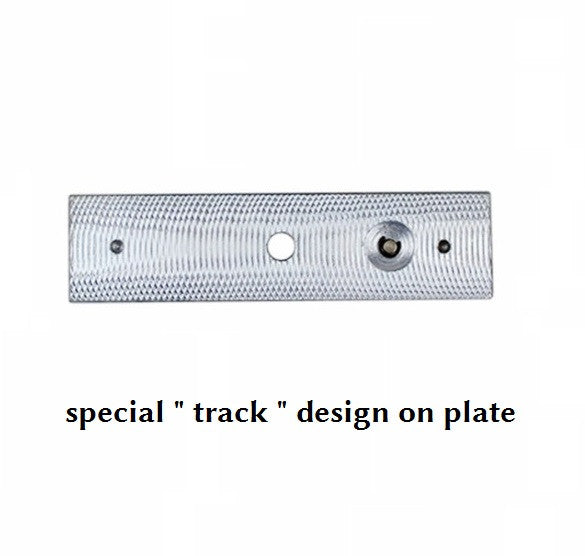

Metal plate for the 380 EM lock - special surface design to enhance holding force.
