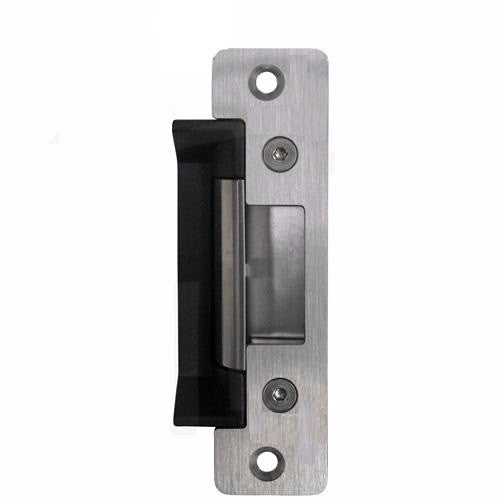

Heavy Duty NO/NC Door Strike

Heavy Duty NO/NC Door Strike


1 unit per order

Heavy Duty electric door strike - Strong and better protection for your property

Holding Force : 1750 lbs ( 800 Kg )

Function :  NO & NC (  Normal Open & Normal Close) switchable

NO - Open with power ON
NC - Close with power ON
* This model can switch between NO and NC at any time!
* Simply release the 2 screws on the side and pull the electrical cable to choose the way you like
Model : 138 Standard
Product :  Heavy Duty Electric Strike with Long Faceplate
Standard : ANSI
Strike Size : 124L x 32W x 33H mm
Plate Size : 124L x 32W mm
Front Hole-to-Hole : 105mm ( 4 1/8" )
Strike Structure:
Stainless Steel
Holding Strength:
1750 lbs ( 800kg )
Current: DC12V/250mA
Feature: Fail Secure(YS-138NO)
Fail Safe(YS-138NC)
Surface Temperature: Within +20℃
Suitable Temperature: -10~+55℃(14-131F)
Suitable For:
Wooden Door,Metal Door,PVC Door
Opening Mode: 90 Degree Swinging Door
