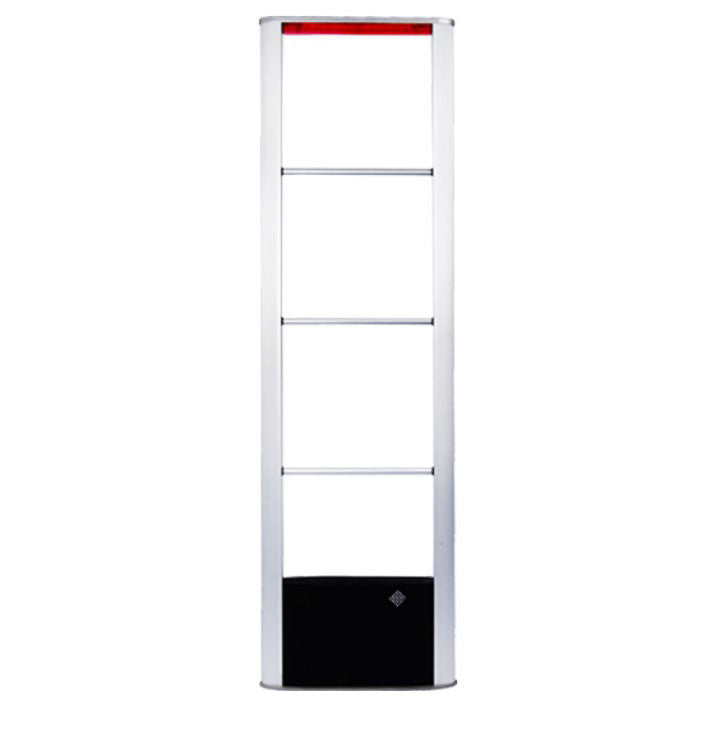

MONO Security System - RF Frequency
1 single tower system ONLY
2-in-1 MONO System - Single Tower
( Transmitting and Receiving signals by the same unit )
3 Detection Bars - more coverage
Double wires inside = better detection performance
Taller Frame : 166 cm ( Tall ) x 42 cm ( width ) = more coverage
Package includes :
1. One Tall MONO Antenna
2. 110V power box
Specifications:
Scanning Frequency: 8.2 MHz±0.05 MHz;
Scanning Bandwidth: 7.7-8.7 MHz;
Sensitivity switch on PC board
Power Source : 110V
Detection Range:
Soft label: 2 ft / side
High Performance SQ Hard tag: 2.5 ft / side
Large Hard tag: 3 ft / side
Sensitivity Control
Adjust its sensitivity to its best level
